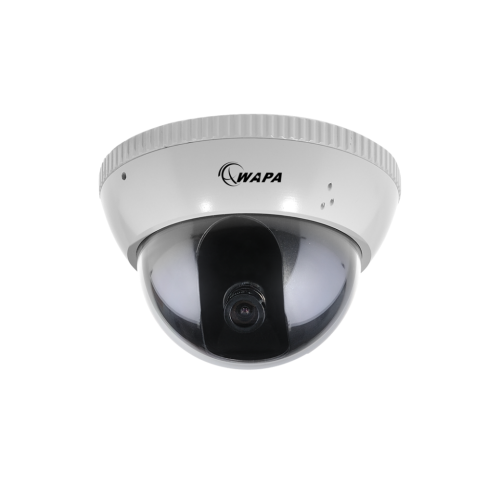

Camera IP WAPA BL-CS3720D

Image sensor 1/4 inch CMOS sensor, 1M Pixel

Exposure Mode Auto Exposure, balance white, and gain control.

PAL video resolution: 1280 × 720/640 × 352/432 × 240

Lens 2.8 / 3.6 / 6mm optional

Manual focus

Min. Illumination 0.1Lux / F1.6 (Color)

tilt range from 0 to 45 ° Manually

Video compression MPEG-4 / H.264

video compression bit rate of 500Kbps-4Mbps

50Hz video frame rate: 25fps (1280 × 720/640 × 352/432 × 240)

TCP / UDP / IP / HTTP / FTP / SMTP / DHCP / DNS / ARP / ICMP / POP3 / NTP

communication interface RJ45,100M Ethernet interface Auto-adaptive

Back-end PC / NVR equipment

power input DC 12V 1A

Power consumption Max. 6W

Working temperature -20 ~ + 70 ℃

Working humidity 10 ~ 85%

weight 0.42kg

Measurement (WxH) Ф108.0 × 72.0mm
